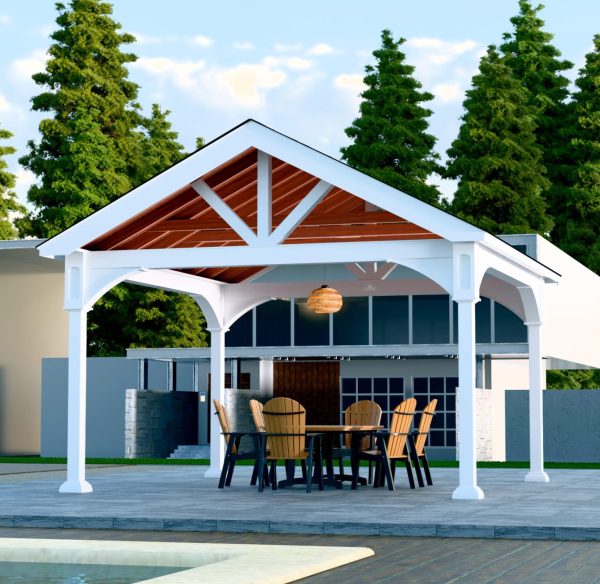

16′ x 16′ A-Frame Vinyl Pavilion
Genuine craftsmanship, hand-selected materials, and fine finishes. The perfect addition to your outdoor space is the 16′ x 16′ White Vinyl A-Frame Traditional Pavilion, featuring 6″ Higher Posts a beautiful Mahogany stained ceiling that enhances the warmth and charm of the structure. The easy maintenance-free vinyl offers resistance to dirt and a clean, timeless look, while the A-frame design exudes classic sophistication.
Customize This Structure
Choose sizes, features, and upgrades to match your needs. Create a tailored version with the options below and request a quote.
- Description and Specs
- Drawings, Manuals & Videos
- Warranty & Return Policy
- Site Preparation
DESCRIPTION AND SPECS

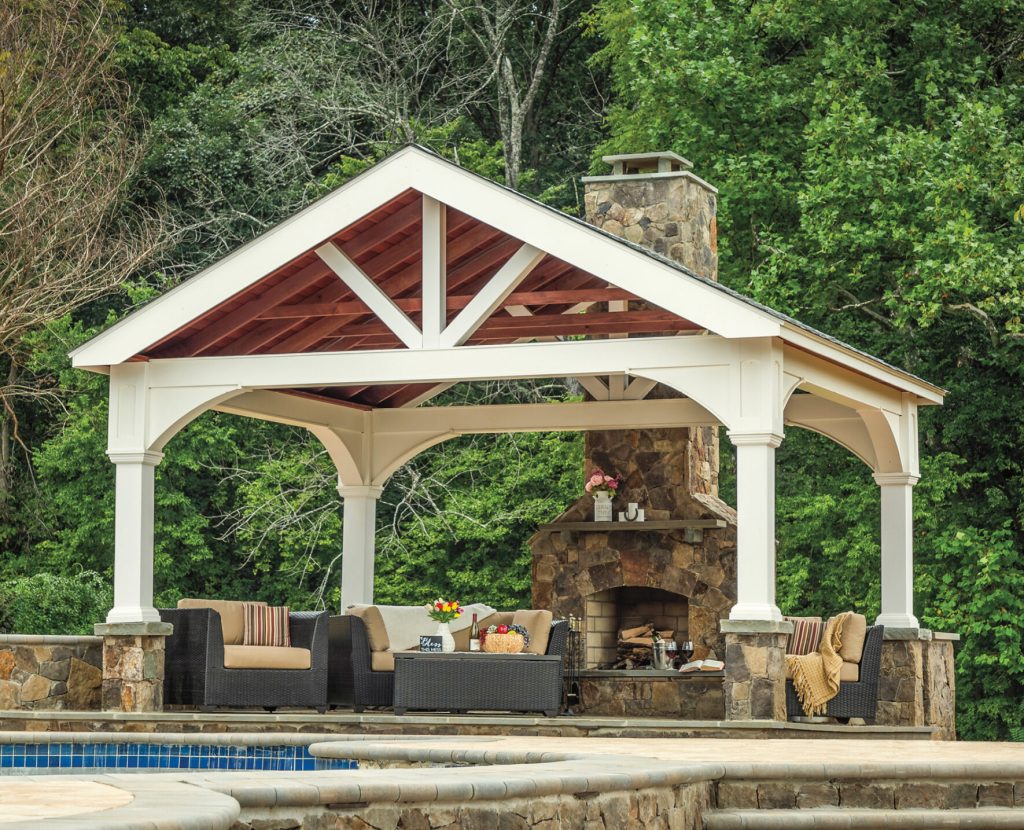

Our standard Vinyl A-Frame Pavilions are made similar to our Vinyl Traditional Pavilions, but with an A-Frame roof. The 5×5 posts are laminated to resist warping and checking and wrapped in vinyl sleeves. The posts come with brackets at each base to attach directly to your concrete pad and are covered with a decorative skirt for a finished look. The braces add beauty, and lateral strength to resist high winds. Our decorative post trim covers all the connections for a clean appearance. The headers are built with 3 ply 2x8s to span up to 18′ long without sagging. The roof is made with double rafters for structural integrity, and sheeted with beautiful 1×6 tongue and groove boards for the ceiling. The roof is a 6/12 pitch and covered with architectural asphalt shingles. Our rectangle pavilions are engineered to withstand 140 mph winds and 45 pounds per square foot snow loads. All this comes standard on your Vinyl A-Frame Pavilion for a strong and beautiful structure to give you the perfect oasis for outdoor entertaining.
| Material | Vinyl |
|---|---|
| Architectural Shingle Roofing | Charcoal Grey, Driftwood, Dual Black, Dual Brown, Dual Grey, Earthtone Cedar, Harvard Slate, Weatherwood |
| Metal Roofing | Green, Blue, Red, Bronze, Charcoal, Black |
| Metal Roofing Style | 5V Panel, Standing Seam |
| Size | 10' x 10', 10' x 12', 10' x 14', 10' x 16', 10' x 18', 10' x 20', 12' x 10', 12' x 12', 12' x 14', 12' x 16', 12' x 18', 12' x 20', 12' x 24', 14' x 10', 14' x 12', 14' x 14', 14' x 16', 14' x 18', 14' x 20', 14' x 24', 14' x 28', 16' x 10', 16' x 12', 16' x 14', 16' x 16', 16' x 20', 16' x 24', 16' x 28', 16' x 32', 18' x 10', 18' x 12', 18' x 14', 18' x 16', 18' x 18', 18' x 24', 18' x 28', 18' x 32', 18' x 36', 20' x 10', 20' x 12', 20' x 14', 20' x 16', 20' x 20', 20' x 24', 20' x 28', 20' x 32', 20' x 36', 20' x 40' |
| Electrical Package | Addon |
| Cupola | Pavilion Cupola |
| Post Style | 10'' Tapered Column, 5×5 Superior Vinyl Post, 6” Higher 6×6 Vinyl Post, 6×6 Vinyl Post, 8×8 Vinyl Post |
| Ceiling Finish | Mahogany Stain, Golden Oak Stain, Cedar Stain, Canyon Brown Stain, Cinder Stain, Mushroom Stain, Sky Gray Stain, Sepia Brown Stain |
| Vinyl | |
| EZ Shade Curtain | Black, Burlap, Dakota Stripe Blueprint, Dakota Stripe Clay, Metallica Smoke, Navy Pier, Stucco |
DRAWINGS, MANUALS & VIDEOS
Engineering Drawings
10’x10′
10’x12′
10’x14′
10’x16′
10’x18′
10’x20′
10’x24′
10’x28′
12’x10′
12’x12′
12’x14′
12’x16′
12’x18′
12’x20′
12’x24′
12’x28′
14’x10′
14’x12′
14’x14′
14’x16′
14’x18′
14’x20′
14’x24′
14’x28′
16’x10′
16’x12′
16’x14′
16’x16′
16’x18′
16’x20′
16’x24′
16’x28′
16’x32′
16’x36′
16’x40′
18’x10′
18’x12′
18’x14′
18’x16′
18’x18′
18’x20′
18’x24′
18’x28′
18’x32′
18’x36′
18’x40′
20’x10′
20’x12′
20’x14′
20’x16′
20’x18′
20’x20′
20’x24′
20’x28′
20’x32′
20’x36′
20’x40′
Assembly Manual
COUNTRY LANE GAZEBO'S ELITE WARRANTY
This is a Ten Year limited warranty certificate covering your use of the outdoor structure manufactured by Country Lane Gazebos, New Holland, PA. This warranty is non-transferable and applies only to the original purchaser and only to the original location, unless the product was relocated by a Country Lane Gazebos approved installer. Relocating the covered product by any other party automatically invalidates this warranty.
When used appropriately and maintained properly, Country Lane Gazebos guarantees that this product will remain structurally sound. Normal wear and tear, fading of exterior surfaces, and general aging, which is common of any outdoor product that is exposed to natural elements, is not covered under warranty. As with any building which is located on top of the ground, settling may occur. You also will need to periodically clean, paint caulk and keep vegetation from growing around the edges of the outdoor structure which will cut off ventilation. To be valid, the original invoice must be attached to this guarantee.
Return Policy
FREE RETURNS. AND please inspect your structure upon arrival and prior to installation—or immediately following professional installation—for any damage or defects. Failure to perform this inspection may result in ineligibility for returns or replacements. Please review your order fully and understand the return policies. Rember that our Amish-Crafted Structures are heavyweight champions of durability and safety—nothing like the lighter structures you'll find on online discount sites or look-alike copycats.
Eligibility for Returns:
Time Frame: Returns are accepted within 30 days from the date of delivery.
Condition: Items must be in new, unused condition, free from damage, and include all original packaging and documentation.
Return Process:
Initiate Return: Contact our Customer Service team to request a Return Authorization Number (RAN).
Customer Service Team Action: A Customer Service Team Member will reach out for the next steps, which may include an on-site or virtual site inspection to determine the proper action.
Shipping: If returns of product(s) is required, we will provide the shipping method chosen by Customer Service. Shipping costs back to the manufacturer may be covered by the manufacturer, depending upon the Customer Service action.
Inspection: Upon receipt of all products, we will inspect the item to ensure it meets return criteria.
Refunds:
Restocking Fee: A standard 30% restocking fee will be deducted from the refund amount.
Processing Time: Refunds will be issued to the original payment method within 10 business days after inspection approval. In place of a refund, a credit may be issued by Customer Service for the full amount of purchase if desired.
Non-Refundable Costs: Because of the varying global shipping industry standards, the original shipping charges are non-refundable.
Non-Returnable Items:
Custom Orders: Customized structures with specific requirements are non-returnable.
Assembled/Installed Items: For safety procedures - Products that have been assembled or installed are not eligible for return.
Damaged or Defective Items:
If your structure arrives damaged or defective, please contact us within 7 days of delivery. We will arrange for repair, replacement, or return at no additional cost to you.
Purchases Through Authorized Dealers:
If you purchased your playset through an authorized dealer, please contact the dealer directly to initiate the return process, as their return policies may apply.
Additional Information:
Exchanges: Handled as separate transactions; initiate a return and place a new order.
Return Authorization: All returns require a RAN; unauthorized returns may be refused.
By offering free return shipping and implementing a restocking fee, we aim to provide a fair return process that balances customer convenience with the costs associated with returns.
For assistance or to initiate a return, please contact our Customer Service team.
Note: This policy is designed to ensure clarity and fairness for both our customers and our company.
SITE PREPARATION: ENSURING A SMOOTH INSTALLATION
Proper site preparation is critical to the successful installation and longevity of your Country Lane Gazebo. Please review the following requirements to ensure your structure is ready for installation:
Site Requirements
- Level and Ready: The installation area must be level, stable, and free of debris.
Selected and Approved: The placement of your structure must comply with local zoning laws, building codes, and any required permits.
- Structural Drawings
Need detailed plans? We can provide structural drawings to assist with site preparation and proper code permit applications. Contact us for more information.
Self-Installation Guidelines
If you're self-installing your structure, it's vital to follow all guidelines for preparation and assembly. Improper site preparation or installation may void all warranties and/or impact any insurance claims and/or be liable for any damages/injuries.
In Doubt? Hire a Pro: If you're unsure about any part of the process, we recommend hiring a local contractor. Contact or call us at 877.429.3262 to see if we have a certified Pro Master Contractor in your area.
Proper Footers and Foundation
Proper foundations are required prior to installation:
- Your structure must be secured to a proper foundation or footers according to your local codes.
- Consult with a professional to ensure the foundation meets all requirements.
By preparing your site correctly, you're ensuring a seamless installation and the long-term performance of your Country Lane Gazebo. If you have any questions, don't hesitate to reach out—we're here to help!
